Baker Hughes Approved Flanges
McNeil Steel & Alloys FZE, based in the United Arab Emirates, specializes in manufacturing and exporting instrumentation pipe fittings and valves. Their product range includes tubes, pipes, pipe fittings, flanges, instrumentation tube fittings, instrumentation valves, and hardware. They are approved suppliers for major companies such as Total Energies, Shell, ONGC, GASCO, Exxon Mobil, EIL, Chevron Corp, Baker Hughes, and Bahrain Petroleum.
The company is committed to delivering high-quality products and services that meet or exceed customer expectations. Their quality policy emphasizes continuous improvement, adherence to international standards, and maintaining a skilled workforce to ensure product reliability and customer satisfaction.
McNeil Steel & Alloys FZE serves a diverse range of industries, including oil and gas, petrochemicals, power generation, and more. Their extensive product line and industry approvals enable them to meet the specific requirements of these sectors, providing reliable solutions for various applications.

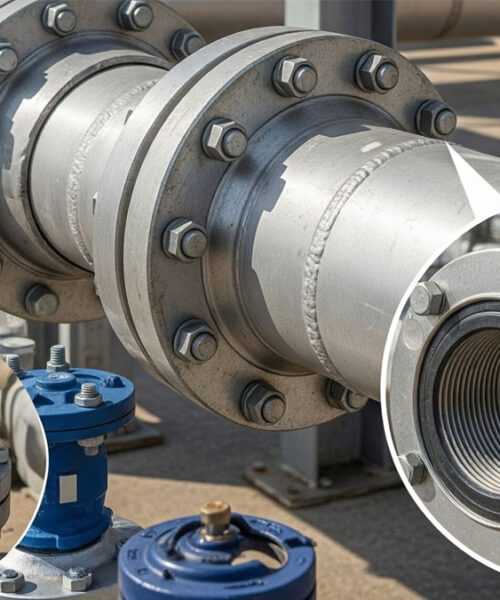

Baker Hughes Approved Flanges
In the world of oilfield services and energy technology, Baker Hughes stands as a global leader. With a legacy of innovation and operational excellence, Baker Hughes is synonymous with cutting-edge solutions in the energy sector. Among the many components critical to its operations, Baker Hughes-approved flanges are vital for ensuring the safety, reliability, and efficiency of complex systems.
These flanges are designed to meet the rigorous standards set by Baker Hughes, guaranteeing their ability to perform under extreme conditions. For companies seeking to source such premium components, working with reliable manufacturers like Mcneil Steel & Alloys FZE, a trusted name in Stainless Steel Flanges Manufacturers, is essential.
Why Stainless Steel Flanges Are the Preferred Choice
Stainless steel flanges are widely used in demanding industrial applications due to their exceptional properties. They offer superior resistance to corrosion, making them ideal for use in environments where they are exposed to chemicals, moisture, or seawater. Their ability to withstand high temperatures and pressures further enhances their suitability for Baker Hughes-approved systems.
As a prominent Stainless Steel Flanges Supplier, Mcneil Steel & Alloys FZE provides flanges made from various grades of stainless steel, including 304, 316, duplex, and super duplex. Each grade is engineered to offer specific advantages, ensuring compatibility with the unique requirements of different industrial applications.
Get In Touch
| Name | Mcneil Steel & Alloys FZE |
| Address | SAIF-Zone, P.O. Box. 120345, Sharjah, UAE |
| Phone | +91 987 088 3613 |
| info@mcneilalloys.ae | |
| Website | https://mcneilalloys.ae |
Baker Hughes-approved flanges are critical components that ensure the seamless operation of industrial systems in the energy sector. Designed to meet the highest standards of quality, performance, and reliability, these flanges play a vital role in maintaining the integrity of pipelines, machinery, and other equipment.
By partnering with a trusted supplier like Mcneil Steel & Alloys FZE, Baker Hughes gains access to top-quality stainless steel flanges that meet their stringent requirements. As a leading Stainless Steel Flanges Manufacturer and Stainless Steel Flanges Exporter, Mcneil Steel & Alloys FZE is dedicated to delivering excellence in every product they produce.
Through their commitment to quality, innovation, and sustainability, Mcneil Steel & Alloys FZE plays an essential role in supporting the success of global energy operations. Their expertise and dedication make them more than just a supplier—they are a trusted partner in driving the future of the energy industry forward, one flange at a time.
Baker Hughes approved flanges, Stainless Steel Flanges Manufacturers, Stainless Steel Flanges Exporters, Stainless Steel Flanges Supplier, Mcneil Steel & Alloys FZE, Baker Hughes flanges supplier, Stainless steel flanges oil and gas, Flanges
Types of Flanges
| Weld Neck Flange | Blind Flange | Threaded Flange | Slip On Flange |
| Socket Weld Flange | Lap Joint Flange | Orifice Flanges | Reducing Flange |
| Expanding Flange | Specialty Flanges | Swivel Flange | Flange Assembly |
| Nipo Flange | Square Flange | Flange Face | Flange Hub |
| Forged Flanges | Groove and Tongue Flanges | Loose Flange | Spectacle Flanges |
| Flat Flanges | Anchor Flange | Threaded | Cast Flange |
Specifications Of SS 304 Flanges
| Specification | Details |
|---|---|
| Specification | Stainless Steel 304 Flanges |
| Supporting Flange Material | Flange Bolts, Ring Joint, Gasket |
| Design For Size | JIS Flanges, ANSI Flanges, BS Flanges, EN Flanges, ASA Flanges, ASME Flanges, DIN Flanges, PN Flanges |
| Common Types of SS Flange | Flanges 150 LB WNRF, 600# BLRF, Class 300 RTJ, Class 900 SORF |
| Size Chart | 1/2″ (15 NB) To 48″ (1200 NB) |
| Production Process | Forged, Heat Treated, and Machined |
| Coating Flange Faces | Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized |
| Application | Chemical Industry, Water Pipeline Industry, Nuclear Power Plant, Fabrication Industry, Natural Gas Industry, Oil And Gas Industry |
| Standards | JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B) Flanges |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Connect Type | RF, FF, RTJ, LMF, SMF, LJF |
| Flange Machining Equipment | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, Electric bevelling machine |
SA 182 Gr F304 Chemical Composition and AISI 304 Flanges Mechanical Properties
| Gr. | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| ASTM A182 F304 | Minimum | – | – | – | – | – | 18.0 | – | 8.0 | – |
| Maximum | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | 0.10 |
| Gr. | Tensile Strength (MPa) Minimum | Yield Strength 0.2% Proof (MPa) Minimum | Elongation (% in 50mm) Minimum | Hardness Rockwell B (HR B) Max | Brinell (HB) Max |
|---|---|---|---|---|---|
| Stainless Steel 304 Flanges | 515 | 205 | 40 | 92 | 201 |
Chemical Properties of 316L Stainless Steel Flanges
| Property | Grade SS 310 | Grade SS 310S |
|---|---|---|
| C | 0.035 max | 0.08 max |
| Mn | 2 max | 2 max |
| Si | 1.0 max | 1.0 max |
| P | 0.045 max | 0.045 max |
| S | 0.030 max | 0.030 max |
| Cr | 16.00 – 18.00 | 16.00 – 18.00 |
| Mo | 2.00 – 3.00 | 2.00 – 3.00 |
| Ni | 10.00 – 14.00 | 11 – 14 |
| Fe | 68.89 min | 67.845 min |
Stainless Steel 316 / 316L Flanges Mechanical & Physical Properties
| Property | Value (SS 316) | Value (SS 316L) |
|---|---|---|
| Density | 8.0 g/cm³ | 8.0 g/cm³ |
| Melting Point | 1400 °C (2550 °F) | 1399 °C (2550 °F) |
| Tensile Strength | Psi – 75000, MPa – 515 | Psi – 75000, MPa – 515 |
| Yield Strength (0.2% Offset) | Psi – 30000, MPa – 205 | Psi – 30000, MPa – 205 |
| Elongation | 35% | 35% |
Stainless Steel 316/316L Flange Equivalent Grades
| Standard | SS 316 | SS 316L |
|---|---|---|
| UNS | S31600 | S31603 |
| WERKSTOFF NR. | 1.4401 / 1.4436 | 1.4404 / 1.4435 |
| AFNOR | Z7CND17‐11‐02 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| JIS | SUS 316 | SUS 316L |
| GOST | – | 03Ch17N14M3 / 03Ch17N14M2 |
| BS | 316S31 / 316S33 | 316S11 / 316S13 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition of Nickel-Alloy Flanges
| Superalloy Grade | UNS Equivalent | C | Mn | S | Si | Cr | Ni | Mo | Cu | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 0.08 | 0.18 | 0.005 | 0.18 | … | 99.5(a) | … | 0.13 | … | 0.2 |
| Nickel 201 | N02201 | 0.01 | 0.18 | 0.005 | 0.18 | … | 99.6(a) | … | 0.13 | … | 0.2 |
| Monel 400 | N04400 | 0.15 | 1 | 0.012 | 0.25 | … | 66.5(a) | … | 31.5 | … | 1.25 |
| Monel K-500 | N05500 | 0.13 | 0.75 | 0.005 | 0.25 | … | 66.5(a) | … | 29.5 | 0.6 | 1 |
| Hastelloy B | N10665 | 0.05 max | 1 | … | 1 | 1 | 61 | 28 | … | … | 5 |
| Hastelloy D | – | 0.12 | 0.9 | … | 9.25 | 1 | 82 | … | 3 | … | 2 |
| Inconel 600 | N06600 | 0.08 | 0.5 | 0.008 | 0.25 | 15.5 | 76.0(a) | … | 0.25 | … | 8 |
| Inconel 800 | N08800 | 0.05 | 0.75 | 0.008 | 0.5 | 21 | 32.5 | … | 0.38 | 0.38 | 46 |
| Hastelloy C-276 | N10276 | 0.01 | 0.5 | 0.02 | 0.03 | 15.5 | 57 | 16 | … | … | 5.5 |
| Inconel 625 | N06025 | 0.05 | 0.25 | 0.008 | 0.25 | 21.5 | 61.0(a) | 9 | … | 0.2 | 2.5 |
| Incoloy 825 | N08825 | 0.03 | 0.5 | 0.015 | 0.25 | 21.5 | 42 | 3 | 2.25 | 0.9 | 30 |
| Hastelloy G | N06030 | 0.03 | 1.5 | 0.02 | 0.5 | 22.25 | 44 | 6.5 | 2 | … | 19.5 |
| 20Cb-3 | N08020 | 0.04 | 1 | 0.02 | 0.5 | 20 | 34 | 2.5 | 3.5 | … | … |
Mechanical Properties of Nickel-Alloy Flanges
| Superalloy Grade | UNS Equivalent | Yield Strength (in ksi) | Tensile Strength (in ksi) | Elongation % | Rockwell | Brinell |
|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 15 | 55 | 35 | – | 90-120 |
| Nickel 201 | N02201 | 12 | 50 | 35 | – | 90-120 |
| Monel 400 | N04400 | 25 | 70 | 35 | – | 110-149 |
| Monel K-500 | N05500 | 100 | 140 | 17 | – | 265-346 |
| Hastelloy B-2 | N10665 | 51 | 110 | 40 | C22 | – |
| Hastelloy D-205 | – | 49 | 114 | 57 | C30-39 | – |
| Inconel 600 | N06600 | 30 | 80 | 35 | – | 120-170 |
| Inconel 800 | N08800 | 30 | 75 | 30 | – | 120-184 |
| Hastelloy C-276 | N10276 | 60 | 115 | 50 | 184 | – |
| Inconel 625 | N06025 | 39 | 98 | 30 | – | 180 |
| Incoloy 825 | N08825 | 35 | 85 | 30 | – | 120-180 |
| Hastelloy G-30 | N06030 | 51 | 100 | 56 | – | – |
| 20Cb-3 | N08020 | 35 | 80 | 30 | B84-90 | 160 |
Inspection & Testing offered by us
| Inspection & Testing | Details |
|---|---|
| Mechanical Testing & Chemical Analysis | Includes testing and analysis of mechanical properties and chemical composition. |
| Fully equipped laboratory for corrosion testing | Includes chlorite contamination, bath analysis, penetration, and residual stress measurement. |
| Micro Structure Examination / Analysis | Analysis of microstructures of materials. |
| Laboratory Spectrometer & Portable Spectrometer | Used for spectral analysis in laboratory and on-site environments. |
| Positive Material Identification [PMI] Tester | Tool for verifying material composition. |
| Hydro Testing of CS Pipes and SS Straight and U-Tubes | Testing for leaks and strength of pipes and tubes. |
| Air Under Water Testing – Straight Length up to 30 Meters | Testing pipes underwater for integrity. |
| Ferrite Content & Surface Finish | Testing for ferrite content and analyzing surface finish. |
| Fibroscope – Checking the inside of tubes (OD ≥ 4.7 MM) | Inspection of internal conditions of tubes. |
| Surface Roughness Testing | Measurement of surface roughness of materials. |
| Non Destructive Testing | Various methods to test without damaging the material. |
| Eddy Current Testing | Testing for cracks and defects using electromagnetic induction. |
| Ultrasonic Testing with full body thickness measurement | Using sound waves to detect thickness and flaws in materials. |
| Real Time Digital Radiography Testing | Real-time inspection through digital X-ray imaging. |
| Conventional Film Radiography | Traditional X-ray film testing for material integrity. |
