Exxon Mobil Approved Flanges
McNeil Steel & Alloys FZE, based in the United Arab Emirates, specializes in manufacturing and exporting instrumentation pipe fittings and valves. Their product range includes tubes, pipes, pipe fittings, flanges, instrumentation tube fittings, instrumentation valves, and hardware. They are approved suppliers for major companies such as Total Energies, Shell, ONGC, GASCO, Exxon Mobil, EIL, Chevron Corp, Baker Hughes, and Bahrain Petroleum.
The company is committed to delivering high-quality products and services that meet or exceed customer expectations. Their quality policy emphasizes continuous improvement, adherence to international standards, and maintaining a skilled workforce to ensure product reliability and customer satisfaction.
McNeil Steel & Alloys FZE serves a diverse range of industries, including oil and gas, petrochemicals, power generation, and more. Their extensive product line and industry approvals enable them to meet the specific requirements of these sectors, providing reliable solutions for various applications.

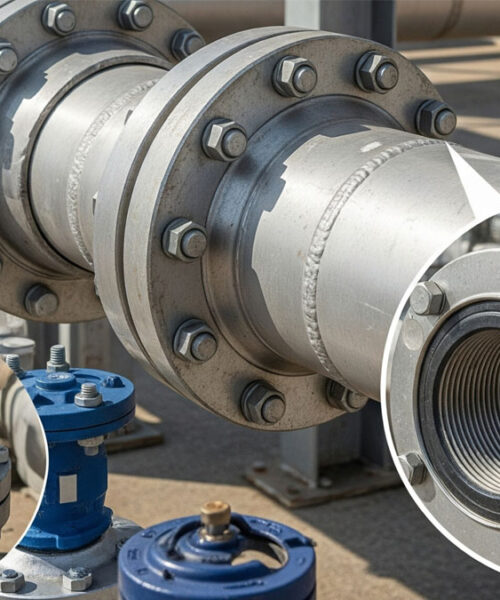

Exxon Mobil Approved Flanges: Ensuring Excellence in Energy Infrastructure
The global energy sector relies heavily on high-performance components to maintain safety, reliability, and efficiency. Exxon Mobil, a global leader in the oil and gas industry, upholds stringent standards for its equipment to ensure the seamless operation of its facilities. Among these critical components, Exxon Mobil approved flanges play a pivotal role in enabling secure connections within piping systems, valves, and machinery. These flanges are designed to meet the rigorous demands of oil, gas, and petrochemical applications, making them essential for the company’s infrastructure.
The Importance of Flanges in Exxon Mobil’s Operations
Flanges are integral components in industrial systems, acting as connectors for pipes, pumps, and valves. Their durability and efficiency are vital in maintaining the flow of materials under extreme conditions, such as high pressure and temperature. Exxon Mobil approved flanges are manufactured to meet strict quality and performance standards, ensuring their compatibility with the company’s advanced technologies and operational needs.
Manufacturers like Mcneil Steel & Alloys FZE play a crucial role in supplying high-quality components. As one of the most trusted Stainless Steel Flanges Manufacturers, the company has built a reputation for delivering products that exceed industry expectations, providing Exxon Mobil and other leading companies with the reliability they require.
Applications of Exxon Mobil Approved Flanges
Flanges approved by Exxon Mobil are used in various critical applications across the company’s operations:
- Pipeline Systems: Connecting pipes for the safe and efficient transportation of crude oil, natural gas, and refined products.
- Processing Plants: Withstanding the high pressures and temperatures involved in refining and chemical processing.
- Offshore Platforms: Providing reliable connections in harsh marine environments.
- Storage Facilities: Ensuring leak-proof seals for tanks and other storage systems.
By sourcing flanges from reliable Stainless Steel Flanges Suppliers like Mcneil Steel & Alloys FZE, Exxon Mobil ensures that its operations remain efficient and environmentally compliant.
Get In Touch
| Name | Mcneil Steel & Alloys FZE |
| Address | SAIF-Zone, P.O. Box. 120345, Sharjah, UAE |
| Phone | +91 987 088 3613 |
| info@mcneilalloys.ae | |
| Website | https://mcneilalloys.ae |
Exxon Mobil approved flanges are a cornerstone of the company’s infrastructure, ensuring the safe and efficient operation of its facilities worldwide. The stringent standards required for these components highlight the importance of sourcing from reputable manufacturers and suppliers.
Mcneil Steel & Alloys FZE stands out as a leader in this field, offering top-notch products that meet the demanding requirements of Exxon Mobil and other global players. As a trusted Stainless Steel Flanges Manufacturer and Stainless Steel Flanges Supplier, they continue to contribute to the success of the energy sector, providing solutions that ensure long-term reliability and performance.
By partnering with experts like Mcneil Steel & Alloys FZE, Exxon Mobil and similar companies can confidently address the challenges of their industries, driving innovation and efficiency for a sustainable future.
Exxon Mobil approved flanges, Stainless Steel Flanges Manufacturer, Stainless Steel Flanges Exporters, Stainless Steel Flanges Supplier, Mcneil Steel & Alloys FZE, Oil and Gas Flanges, High-Quality Flanges for Refineries, Flange Exporters
Types of Flanges
| Weld Neck Flange | Blind Flange | Threaded Flange | Slip On Flange |
| Socket Weld Flange | Lap Joint Flange | Orifice Flanges | Reducing Flange |
| Expanding Flange | Specialty Flanges | Swivel Flange | Flange Assembly |
| Nipo Flange | Square Flange | Flange Face | Flange Hub |
| Forged Flanges | Groove and Tongue Flanges | Loose Flange | Spectacle Flanges |
| Flat Flanges | Anchor Flange | Threaded | Cast Flange |
Specifications Of SS 304 Flanges
| Specification | Details |
|---|---|
| Specification | Stainless Steel 304 Flanges |
| Supporting Flange Material | Flange Bolts, Ring Joint, Gasket |
| Design For Size | JIS Flanges, ANSI Flanges, BS Flanges, EN Flanges, ASA Flanges, ASME Flanges, DIN Flanges, PN Flanges |
| Common Types of SS Flange | Flanges 150 LB WNRF, 600# BLRF, Class 300 RTJ, Class 900 SORF |
| Size Chart | 1/2″ (15 NB) To 48″ (1200 NB) |
| Production Process | Forged, Heat Treated, and Machined |
| Coating Flange Faces | Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized |
| Application | Chemical Industry, Water Pipeline Industry, Nuclear Power Plant, Fabrication Industry, Natural Gas Industry, Oil And Gas Industry |
| Standards | JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B) Flanges |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Connect Type | RF, FF, RTJ, LMF, SMF, LJF |
| Flange Machining Equipment | Sand-blasting machine, Press machine, Bending machine, Pushing Machine, Electric bevelling machine |
SA 182 Gr F304 Chemical Composition and AISI 304 Flanges Mechanical Properties
| Gr. | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| ASTM A182 F304 | Minimum | – | – | – | – | – | 18.0 | – | 8.0 | – |
| Maximum | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | 0.10 |
| Gr. | Tensile Strength (MPa) Minimum | Yield Strength 0.2% Proof (MPa) Minimum | Elongation (% in 50mm) Minimum | Hardness Rockwell B (HR B) Max | Brinell (HB) Max |
|---|---|---|---|---|---|
| Stainless Steel 304 Flanges | 515 | 205 | 40 | 92 | 201 |
Chemical Properties of 316L Stainless Steel Flanges
| Property | Grade SS 310 | Grade SS 310S |
|---|---|---|
| C | 0.035 max | 0.08 max |
| Mn | 2 max | 2 max |
| Si | 1.0 max | 1.0 max |
| P | 0.045 max | 0.045 max |
| S | 0.030 max | 0.030 max |
| Cr | 16.00 – 18.00 | 16.00 – 18.00 |
| Mo | 2.00 – 3.00 | 2.00 – 3.00 |
| Ni | 10.00 – 14.00 | 11 – 14 |
| Fe | 68.89 min | 67.845 min |
Stainless Steel 316 / 316L Flanges Mechanical & Physical Properties
| Property | Value (SS 316) | Value (SS 316L) |
|---|---|---|
| Density | 8.0 g/cm³ | 8.0 g/cm³ |
| Melting Point | 1400 °C (2550 °F) | 1399 °C (2550 °F) |
| Tensile Strength | Psi – 75000, MPa – 515 | Psi – 75000, MPa – 515 |
| Yield Strength (0.2% Offset) | Psi – 30000, MPa – 205 | Psi – 30000, MPa – 205 |
| Elongation | 35% | 35% |
Stainless Steel 316/316L Flange Equivalent Grades
| Standard | SS 316 | SS 316L |
|---|---|---|
| UNS | S31600 | S31603 |
| WERKSTOFF NR. | 1.4401 / 1.4436 | 1.4404 / 1.4435 |
| AFNOR | Z7CND17‐11‐02 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| JIS | SUS 316 | SUS 316L |
| GOST | – | 03Ch17N14M3 / 03Ch17N14M2 |
| BS | 316S31 / 316S33 | 316S11 / 316S13 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition of Nickel-Alloy Flanges
| Superalloy Grade | UNS Equivalent | C | Mn | S | Si | Cr | Ni | Mo | Cu | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 0.08 | 0.18 | 0.005 | 0.18 | … | 99.5(a) | … | 0.13 | … | 0.2 |
| Nickel 201 | N02201 | 0.01 | 0.18 | 0.005 | 0.18 | … | 99.6(a) | … | 0.13 | … | 0.2 |
| Monel 400 | N04400 | 0.15 | 1 | 0.012 | 0.25 | … | 66.5(a) | … | 31.5 | … | 1.25 |
| Monel K-500 | N05500 | 0.13 | 0.75 | 0.005 | 0.25 | … | 66.5(a) | … | 29.5 | 0.6 | 1 |
| Hastelloy B | N10665 | 0.05 max | 1 | … | 1 | 1 | 61 | 28 | … | … | 5 |
| Hastelloy D | – | 0.12 | 0.9 | … | 9.25 | 1 | 82 | … | 3 | … | 2 |
| Inconel 600 | N06600 | 0.08 | 0.5 | 0.008 | 0.25 | 15.5 | 76.0(a) | … | 0.25 | … | 8 |
| Inconel 800 | N08800 | 0.05 | 0.75 | 0.008 | 0.5 | 21 | 32.5 | … | 0.38 | 0.38 | 46 |
| Hastelloy C-276 | N10276 | 0.01 | 0.5 | 0.02 | 0.03 | 15.5 | 57 | 16 | … | … | 5.5 |
| Inconel 625 | N06025 | 0.05 | 0.25 | 0.008 | 0.25 | 21.5 | 61.0(a) | 9 | … | 0.2 | 2.5 |
| Incoloy 825 | N08825 | 0.03 | 0.5 | 0.015 | 0.25 | 21.5 | 42 | 3 | 2.25 | 0.9 | 30 |
| Hastelloy G | N06030 | 0.03 | 1.5 | 0.02 | 0.5 | 22.25 | 44 | 6.5 | 2 | … | 19.5 |
| 20Cb-3 | N08020 | 0.04 | 1 | 0.02 | 0.5 | 20 | 34 | 2.5 | 3.5 | … | … |
Mechanical Properties of Nickel-Alloy Flanges
| Superalloy Grade | UNS Equivalent | Yield Strength (in ksi) | Tensile Strength (in ksi) | Elongation % | Rockwell | Brinell |
|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 15 | 55 | 35 | – | 90-120 |
| Nickel 201 | N02201 | 12 | 50 | 35 | – | 90-120 |
| Monel 400 | N04400 | 25 | 70 | 35 | – | 110-149 |
| Monel K-500 | N05500 | 100 | 140 | 17 | – | 265-346 |
| Hastelloy B-2 | N10665 | 51 | 110 | 40 | C22 | – |
| Hastelloy D-205 | – | 49 | 114 | 57 | C30-39 | – |
| Inconel 600 | N06600 | 30 | 80 | 35 | – | 120-170 |
| Inconel 800 | N08800 | 30 | 75 | 30 | – | 120-184 |
| Hastelloy C-276 | N10276 | 60 | 115 | 50 | 184 | – |
| Inconel 625 | N06025 | 39 | 98 | 30 | – | 180 |
| Incoloy 825 | N08825 | 35 | 85 | 30 | – | 120-180 |
| Hastelloy G-30 | N06030 | 51 | 100 | 56 | – | – |
| 20Cb-3 | N08020 | 35 | 80 | 30 | B84-90 | 160 |
Inspection & Testing offered by us
| Inspection & Testing | Details |
|---|---|
| Mechanical Testing & Chemical Analysis | Includes testing and analysis of mechanical properties and chemical composition. |
| Fully equipped laboratory for corrosion testing | Includes chlorite contamination, bath analysis, penetration, and residual stress measurement. |
| Micro Structure Examination / Analysis | Analysis of microstructures of materials. |
| Laboratory Spectrometer & Portable Spectrometer | Used for spectral analysis in laboratory and on-site environments. |
| Positive Material Identification [PMI] Tester | Tool for verifying material composition. |
| Hydro Testing of CS Pipes and SS Straight and U-Tubes | Testing for leaks and strength of pipes and tubes. |
| Air Under Water Testing – Straight Length up to 30 Meters | Testing pipes underwater for integrity. |
| Ferrite Content & Surface Finish | Testing for ferrite content and analyzing surface finish. |
| Fibroscope – Checking the inside of tubes (OD ≥ 4.7 MM) | Inspection of internal conditions of tubes. |
| Surface Roughness Testing | Measurement of surface roughness of materials. |
| Non Destructive Testing | Various methods to test without damaging the material. |
| Eddy Current Testing | Testing for cracks and defects using electromagnetic induction. |
| Ultrasonic Testing with full body thickness measurement | Using sound waves to detect thickness and flaws in materials. |
| Real Time Digital Radiography Testing | Real-time inspection through digital X-ray imaging. |
| Conventional Film Radiography | Traditional X-ray film testing for material integrity. |
